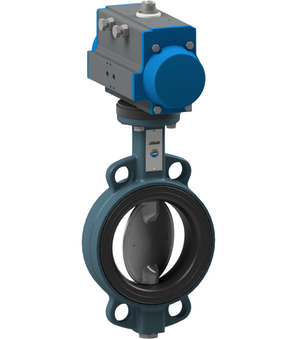

butterfly valve with pneumatic actuator, wafer type, length according to EN558−1R20, body ductile iron EN-GJS-400-15 epoxy coated, disc AISI 316, shaft AISI 430, liner EPDM, nominal flange pressure PN10/16/ANSI150, double acting actuator, control pressure 5,5...8bar, medium temperature -10...+130°C, pressure range 0...10bar, DN 300mm, length 78mm, actuator PAD160
