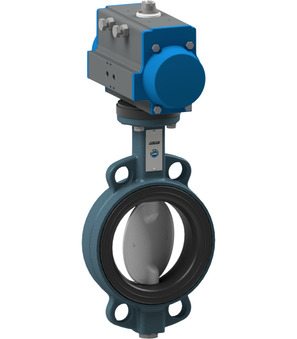

butterfly valve with pneumatic actuator, wafer type, length according to EN558−1R20, body ductile iron EN-GJS-400-15 epoxy coated, shaft AISI 430, liner EPDM, nominal flange pressure PN10/16/ANSI150, single acting actuator, control pressure 5,5...8bar, medium temperature -10...+130°C, pressure range 0...10bar, DN 80mm, length 46mm, disc zinc plated steel, actuator PAS1155
