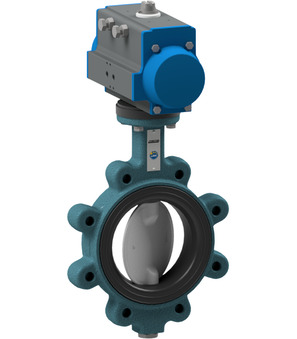

butterfly valve with pneumatic actuator, lug type, length according to EN558−1R20, body ductile iron EN-GJS-400-15 epoxy coated, disc AISI 316, shaft AISI 430, liner EPDM, double acting actuator, control pressure 5,5...8bar, medium temperature -10...+130°C, pressure range 0...10bar, DN 80mm, length 46mm, flange PN10/16, actuator PAD075
