GOUDSMIT MAGNETIC - TPSP125301

https://endurasupplyshop.com/web/image/product.template/219484/image_1920?unique=79732f1

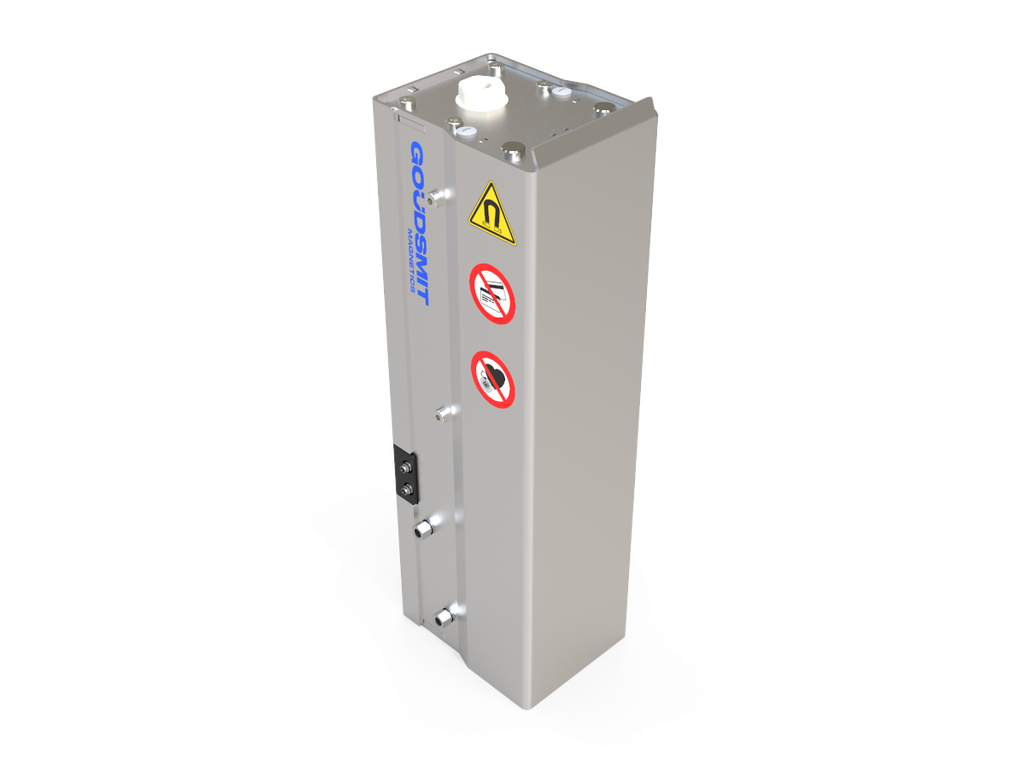

The automatically switchable ‘fail safe’ sheet separator has powerful neodymium magnets and can be switched on and off pneumatically using a new patented system. This safe separator automatically switches to the off position even in the event of a possible interruption of the compressed air. Also at full load of a maximum stack height or during maintenance.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Max. sheet thickness: 4 mm Max. stack height: 490 mm Recommended working surface (for clean sheets): 34 dm² Recommended working surface (for sticky sheets): 22 dm² Mounting interface: Threaded hole M8 (4x) Pneumatic connection: G1/8" (2x) Material housing: AISI304 (SS 1.4301) Surface treatment/finishing: - Min./max. ambient temperature: -20 to 50 °C Operating pressure: 6 - 10 bar Magnetic system: Permanent Neoflux® magnet Magnet quality: Neodymium N-45 Control: Pneumatic - Advised: 5/3-valve Incl. air nozzles: - Depth: 175 mm Width: 140 mm Height: 546 mm Weight: 36 kg
