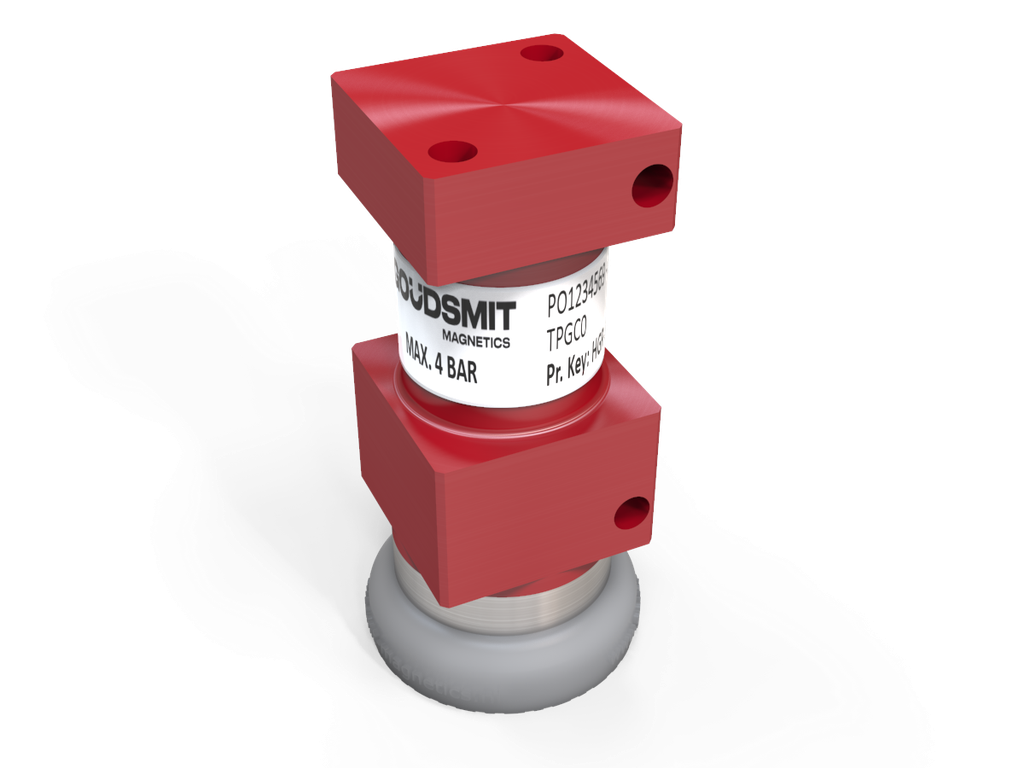

GOUDSMIT MAGNETIC - TPGC024088

https://endurasupplyshop.com/web/image/product.template/219135/image_1920?unique=79732f1

Pneumatic magnetic grippers allow you to safely handle steel workpieces and plates with great speed and precision. Grippers – also known as end effectors – are ideal for speeding up or automating your production process. Durable, safe and accurate robot grippers are a reliable end of arm solution due to the bistable design.


Request Quote

$ 373.55 373.55 USD $ 373.55

$ 373.55

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Switching: Pneumatic: compressed air or vacuum Dimension lifting surface: Ø30 mm Advised working load: 8 N Remark Advised working load: Under ideal conditions - with safety factor 3 acc. EN13155 Max. magnetic tear off force: 24 N Remark max. magnetic tear off force: Under ideal conditions Min. advised sheet thickness: 1 mm Mounting interface: Threaded hole M5 (4x) Pneumatic connection: M5 (2x) Material friction pad/ring: NBR 60° Shore A Material housing: Aluminium / AISI316L (SS 1.4404) (screw cap) Surface treatment/finishing: Anodized Colour: Red Min./max. ambient temperature: 0 to 70 °C Switching vacuum pressure: -0,3 bar Operating pressure: Max.: 6, recommended: 4 bar Air consumption per cycle (1x up, 1x down): 0,052 Magnetic system: Permanent Neoflux® magnet Magnetic layout (number of magnet poles): 2 Magnet quality: Neodymium N-52 Incl. friction pad on magnetic surface: Yes Length: 30 mm Width: 30 mm Height: 63 mm Weight: 0,08 kg
