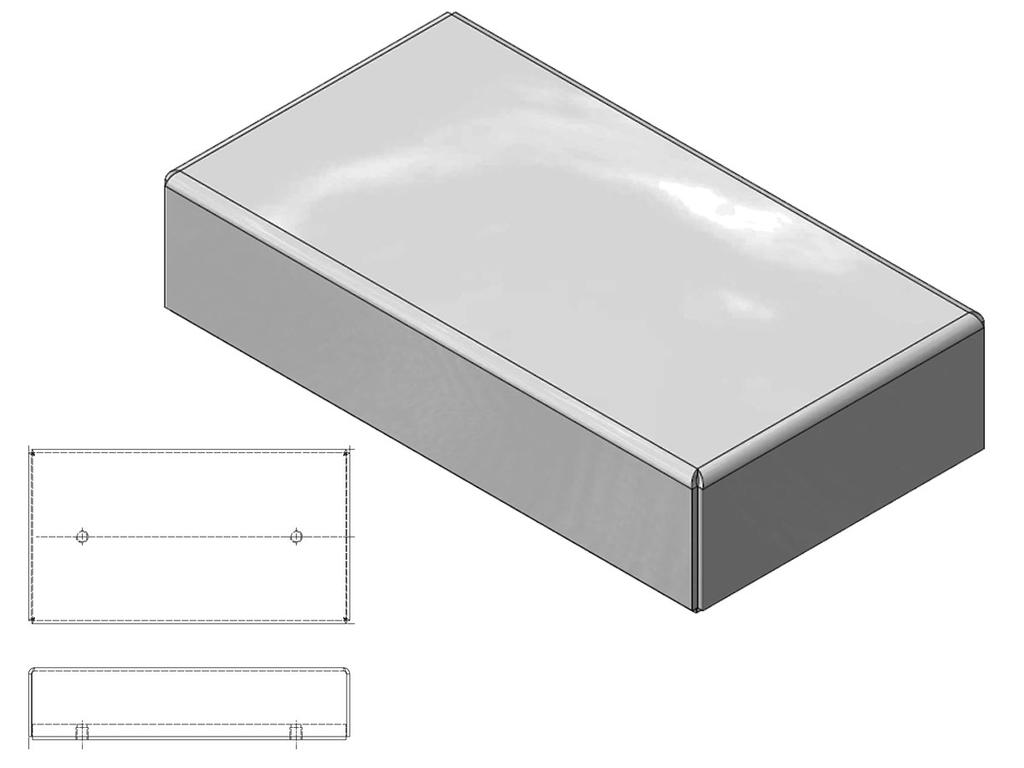

GOUDSMIT MAGNETIC - SVMF010210

https://endurasupplyshop.com/web/image/product.template/219115/image_1920?unique=82b717e

Ferriet plaatmagneten zijn prijsgunstig, maar minder krachtig en groter dan neodymium plaatmagneten. Voordeel is dat ze inzetbaar zijn tot 100°C. Plaatmagneten verwijderen ferro-verontreinigingen vanaf 0,5 mm. Niet geschikt voor zwakmagnetische RVS vervuiling.


Request Quote

$ 333.96 333.96 USD $ 333.96

$ 333.96

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Min. Fe-particle size that can be caught: 0,5 mm Advised max. installation height: 50-65 mm Production stop required during ferrous particles disposal: Yes Cleaning (ferrous particles disposal) method: Manual Ferrous particles disposal via: Manually by wiping Installation/transport interface: Threaded hole M8 (2x) Material housing: AISI304 (SS 1.4301) / S235JRC+C (St 1.0122) Surface treatment/finishing: Painted Welds: WE: Intermittently welded Colour housing: Red (Traffic red): RAL3020 Max. operating temperature: 100 °C Min./max. ambient temperature: -20 to 60 °C Magnetic system: Permanent ferrite magnet with flux boost Magnet quality: Anisotropic ferrite F-33 Magnet field strength (flux density) (±10%): 2400 gauss Length: 210 mm Width: 114 mm Height: 47 mm Weight: 5,6 kg
