GOUDSMIT MAGNETIC - MS-8140544

https://endurasupplyshop.com/web/image/product.template/219494/image_1920?unique=c7cca52

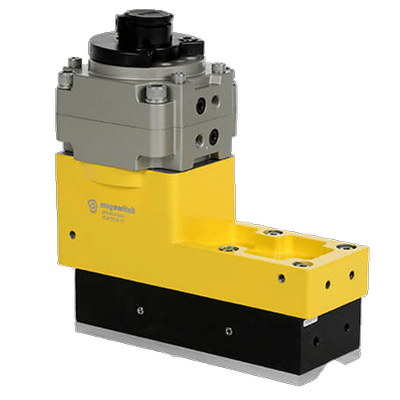

Pneumatic Magswitch magnetic end effectors are suitable for robot end-of-arm applications. They lift thick steel products in flat or round shapes.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Type: PLAY Switching: Pneumatic Dimension lifting surface: 255x98 mm Advised working load: 4900 N Remark Advised working load: Under ideal conditions - with safety factor 3 acc. EN13155 Max. magnetic tear off force: 14720 N Remark max. magnetic tear off force: Under ideal conditions Min. advised sheet thickness: 20 mm Mounting interface: Threaded hole M8 (16x) Pneumatic connection: Rc ¼" (2x) Colour: Yellow / Black / - (not painted) Min./max. ambient temperature: -20 to 80 °C Operating pressure: 3 - 10 bar Magnetic system: Permanent Neoflux® magnet Magnetic layout (number of magnet poles): 12 Magnet quality: Neodymium (NdFeB) Incl. replaceable pole shoes (for alt. product shapes): Yes Length: 286 mm Width: 125 mm Height: 301 mm Weight: 22 kg
