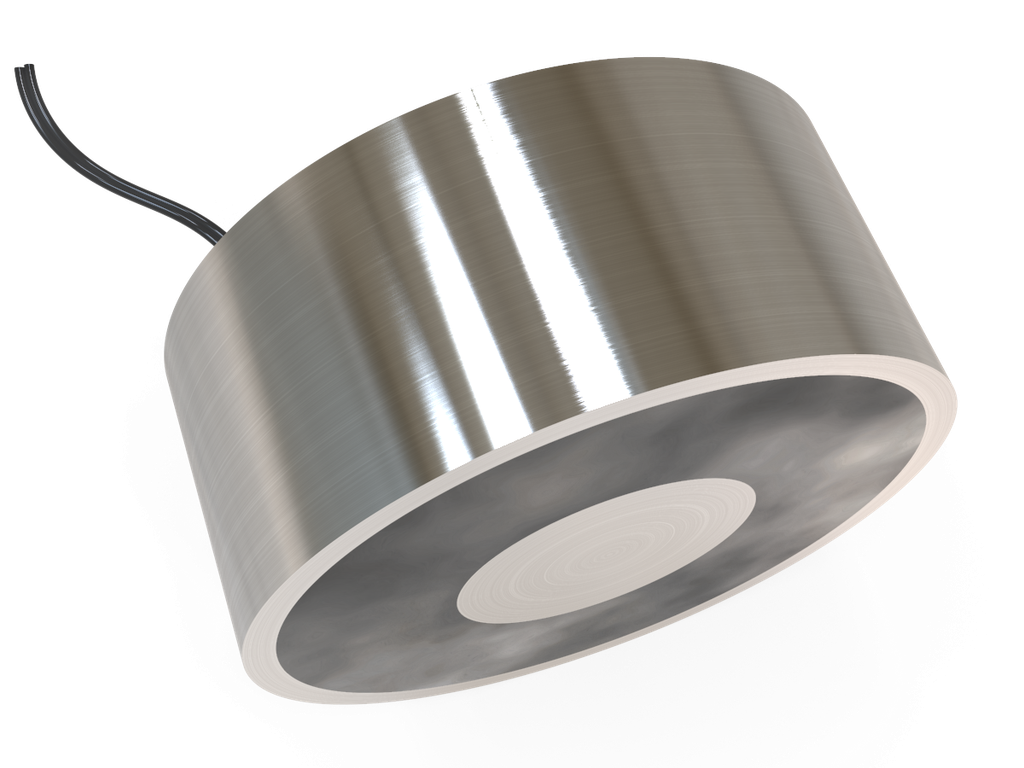

GOUDSMIT MAGNETIC - GM17810

https://endurasupplyshop.com/web/image/product.template/219111/image_1920?unique=72ca862

Electro holding magnets - also called holding electromagnets or electromagnetic grippers - are used for picking up, positioning and holding steel items. The round shape and a threaded hole at the bottom make them ideal for building into existing systems.
These solenoid electromagnets are switched on and off with an electrical voltage.


Request Quote

$ 298.27 298.27 USD $ 298.27

$ 298.27

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Switching / power supply: Electrical Dimension lifting surface: Ø100 mm Max. magnetic tear off force: 3400 N Remark max. magnetic tear off force: Under ideal conditions Mounting interface: Threaded hole M10 Electrical connection: 2 wires Cable length: 2 m Surface treatment/finishing: Zinc plated Max. product temperature (depending on ambient temp.): 80 °C Min./max. ambient temperature: -10 to 40 °C Dust/water protection class: IP65 Magnetic system: Electromagnet Magnet power: 25 W Magnet voltage: 24 V DC Duty cycle: 100%, 24 hours/day Associated control unit (not included): ESVL105002/ESVL110002/ESVL130001 Diameter: 100 mm Height: 43 mm Weight: 2,1 kg
