GOUDSMIT MAGNETIC - GM17806

https://endurasupplyshop.com/web/image/product.template/219095/image_1920?unique=72ca862

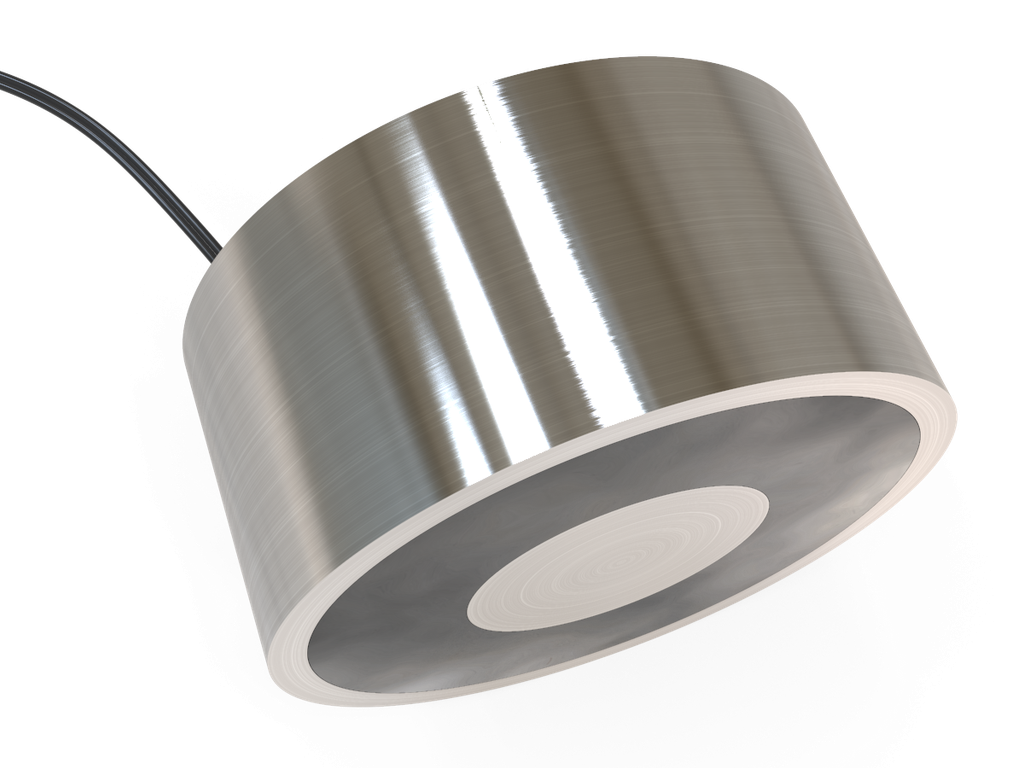

Electro holding magnets - also called holding electromagnets or electromagnetic grippers - are used for picking up, positioning and holding steel items. The round shape and a threaded hole at the bottom make them ideal for building into existing systems.
These solenoid electromagnets are switched on and off with an electrical voltage.


Request Quote

$ 181.26 181.26 USD $ 181.26

$ 181.26

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Switching / power supply: Electrical Dimension lifting surface: Ø63 mm Max. magnetic tear off force: 1000 N Remark max. magnetic tear off force: Under ideal conditions Mounting interface: Threaded hole M8 Electrical connection: 2 wires Cable length: 2 m Surface treatment/finishing: Zinc plated Max. product temperature (depending on ambient temp.): 80 °C Min./max. ambient temperature: -10 to 40 °C Dust/water protection class: IP65 Magnetic system: Electromagnet Magnet power: 10 W Magnet voltage: 24 V DC Duty cycle: 100%, 24 hours/day Associated control unit (not included): ESVL105002/ESVL110002/ESVL130001 Diameter: 63 mm Height: 30 mm Weight: 0,55 kg
