  2. GOUDSMIT MAGNETIC - E0083298

GOUDSMIT MAGNETIC - E0083298

https://endurasupplyshop.com/web/image/product.template/219481/image_1920?unique=c9e7b06

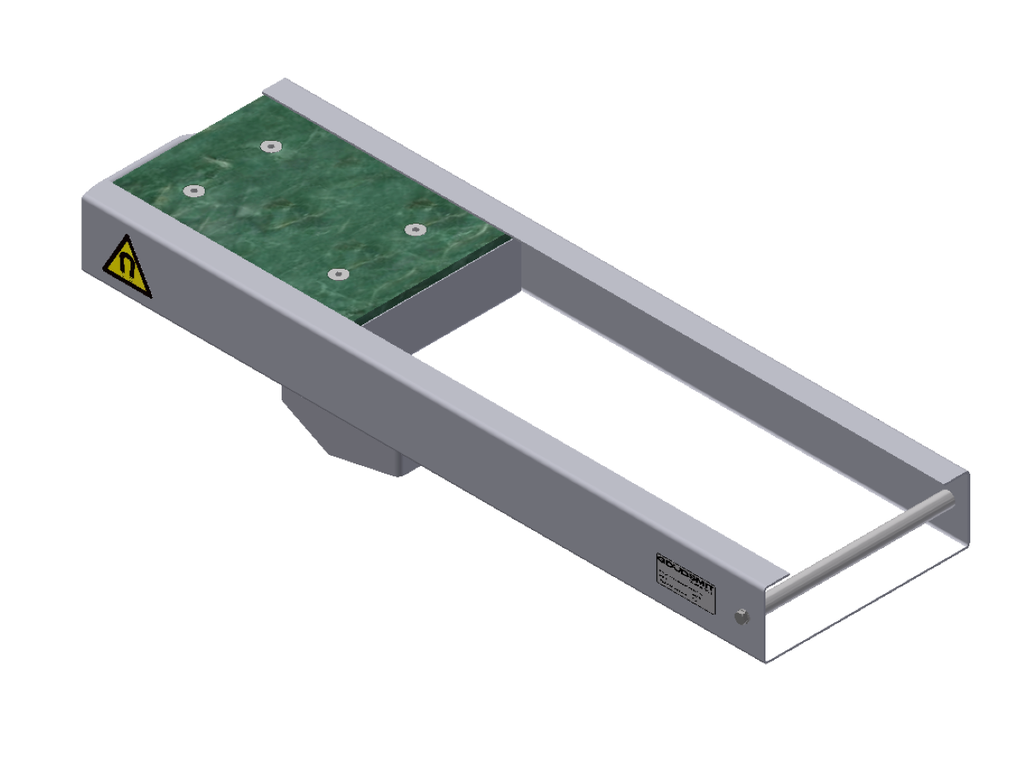

Neodymium magnetic plates are extremely powerful, compact and lightweight. They are suitable for separation of ferrous contaminants from 30 µm to 3 mm. Completely stainless steel and watertight. Suitable for the food industry.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Min. Fe-particle size that can be caught: 0,03 mm Advised max. installation height: 120-180 mm Production stop required during ferrous particles disposal: Yes Cleaning (ferrous particles disposal) method: Manual Ferrous particles disposal via: Manually by moving away the extractor plate Installation/transport interface: Threaded hole M8 (4x) Material housing: AISI316L (SS 1.4404) Surface treatment/finishing: S1: Grit blasted, Ra 3 µm Welds: WM: continuously welded Max. operating temperature: 60 °C Min./max. ambient temperature: -20 to 60 °C Magnetic system: Permanent Neoflux® magnet Magnet quality: Neodymium N-35 Magnet field strength (flux density) (±10%): 5000 gauss Incl. cleaning tray: Yes Length: 760 mm Width: 214 mm Height: 120 mm Weight: 16 kg
