GOUDSMIT MAGNETIC - E0076795

https://endurasupplyshop.com/web/image/product.template/219413/image_1920?unique=c9e7b06

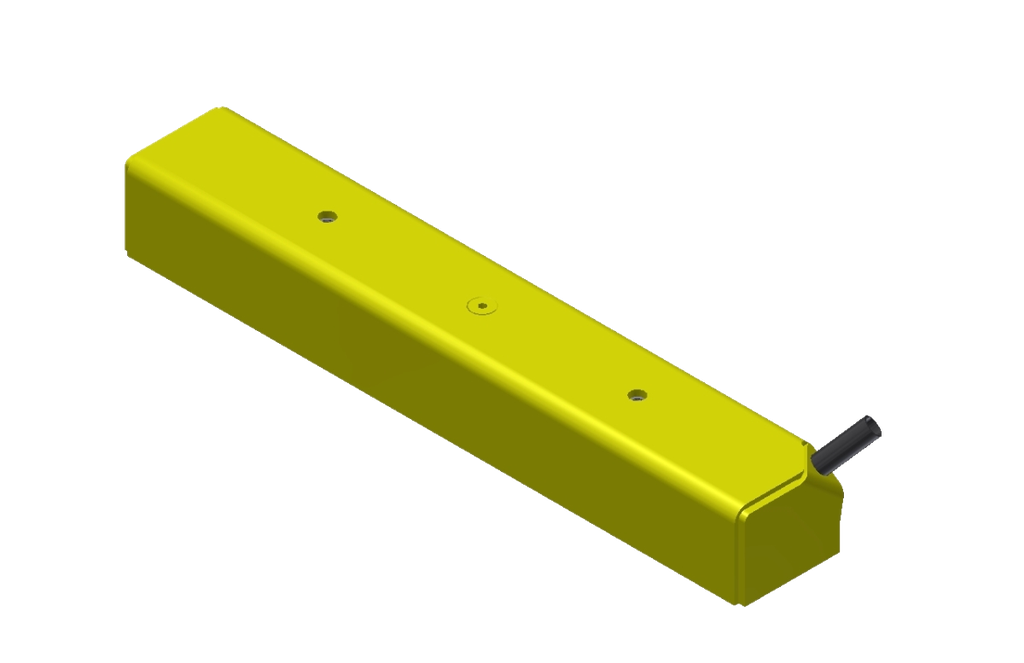

Electromagnetic bars are very suitable when you want to quickly and safely pick up, hold or unload small steel objects such as sheets, pipes or pieces of scrap.

Minimum order quantity nan Units


Request Quote

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    Shipping: Made by Order 1-2 Weeks

    Switching / power supply: Electrical, via a control box Dimension lifting surface: 310x50 mm Advised working load: 480 N Remark Advised working load: Under ideal conditions - with safety factor 2 acc. EN13155 Max. magnetic tear off force: 960 N Remark max. magnetic tear off force: Under ideal conditions Mounting interface: Threaded hole M6 (2x) Electrical connection: Cable, two-core Cable length: 5 m Surface treatment/finishing: Painted Colour: Yellow (Melon yellow): RAL1028 Max. product temperature (depending on ambient temp.): 80 °C Min./max. ambient temperature: -10 to 40 °C Dust/water protection class: IP66 Magnetic system: Electromagnet Magnet power: 27 W Magnet voltage: 24 V DC Duty cycle: 50%, max. 10 min Associated control unit (not included): ESVL105002/ESVL110002/ESVL130001 Length: 310 mm Width: 50 mm Height: 40 mm Weight: 4 kg
