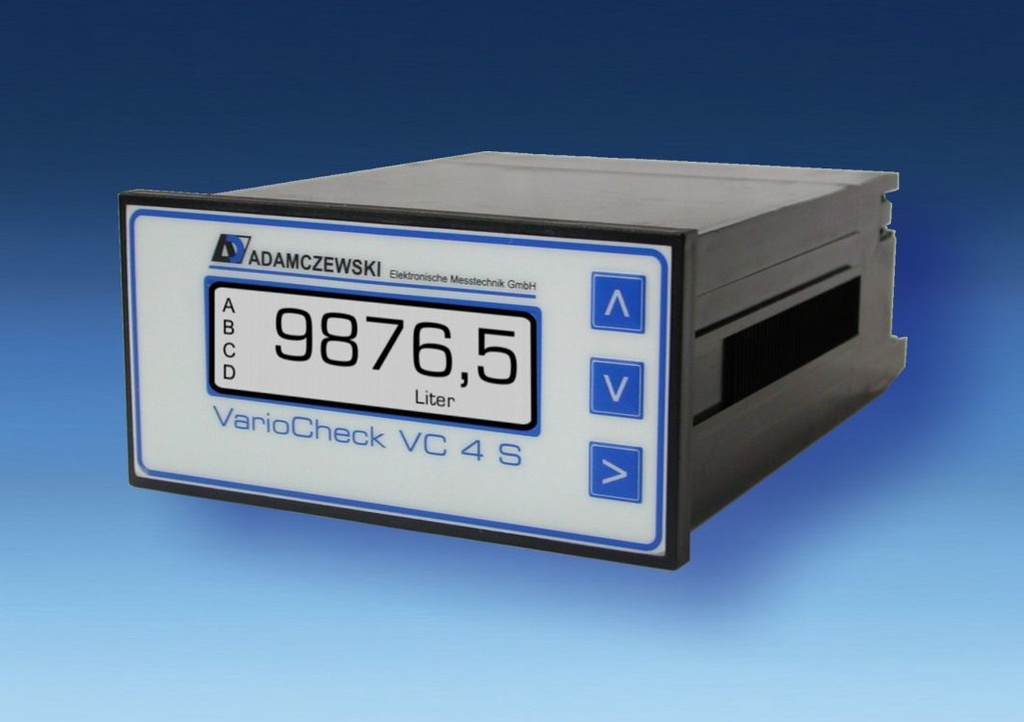

ADAMCZEWSKI - VC4SFE-R2

VarioCheck AD-VC 4S FE-R2
Design: panel-mount case 96x48x130mm (wxhxd)
Input: current, voltage, potentiometer, transmitter (freely programmable)
Output 1 (analog): current (max.20mA)
Output 2 (analog): voltage (max.10V)
Output 3 (digital): 2x relay (change-over contact)
Display: backlit LCD 54x15mm (wxhxd)
Setup: programming keys on the front panel or via API and AD-Studio software (optional available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50...60Hz)
Incl. pre-set user language, operating manual and connection terminal kit (English version)
