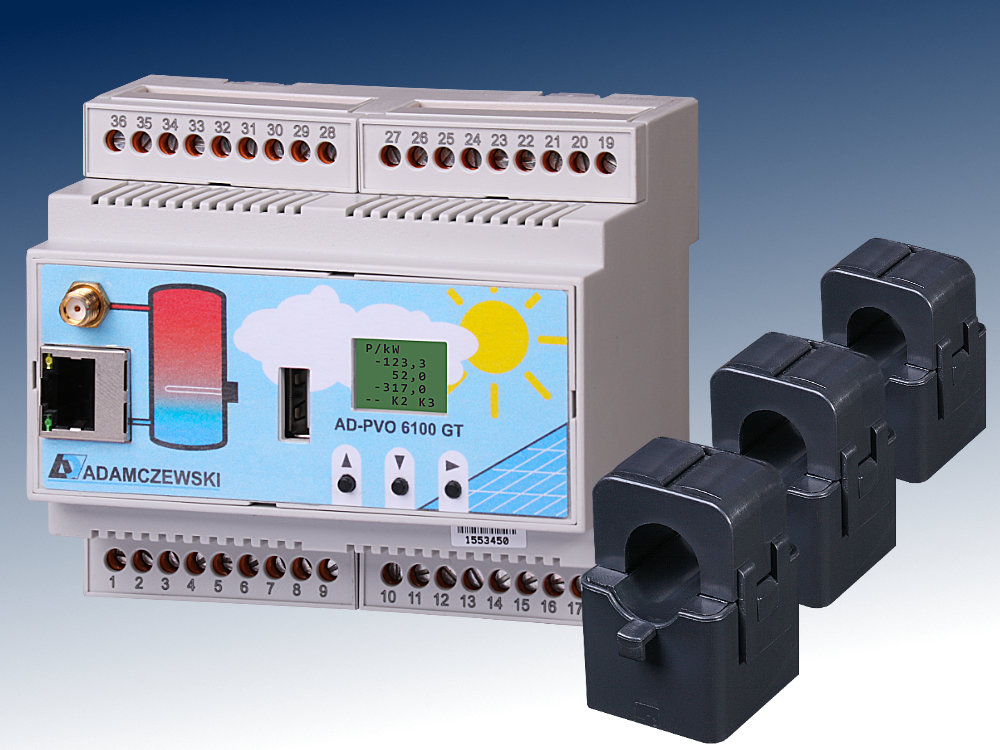

Photovoltaic Optimizer AD-PVO 6100 GT
for monitoring feed-in power and optimizing PV power consumption
Current inputs: 3x 0...100A AC (via folding current transformer 100:0.033)
Voltage inputs: 3x 230V AC + N
Load relay output: 3 independent make contacts (max. 250V AC/9A or 50V DC/9A)
Switching output: Semiconductor, polarity independent (max. 230V/0.1A AC/DC)
Pulse/PWM output: transistor (max. 50V/0.03A DC)
Analog output: 0/4-20mA or 0/2-10V
Digital inputs: dry contact
Temperature input: 0-120°C PT1000
Interfaces: RS485 / USB / Ethernet / WiFi
Display: LCD (three colors)
Housing: DIN-rail mountable cabinet housing 105x90x58mm (WxHxD)
Includes 3 foldable current transformers 100A AC/33mA AC (32x42x46mm) and WiFi antenna
