ADAMCZEWSKI - LU680GA

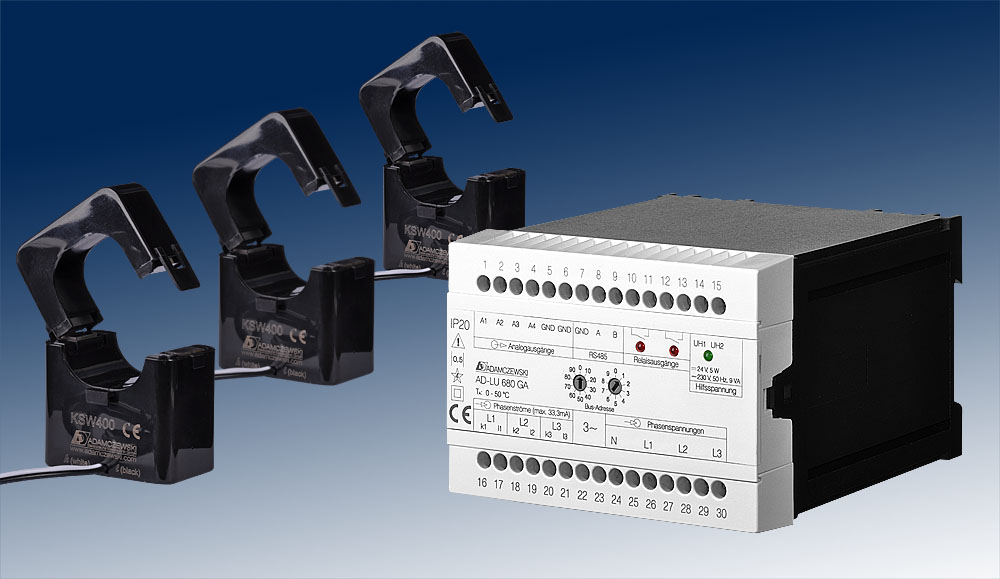

Multifunctional power transducer AD-LU 680 GA
programmable via API and AD-Studio software (optional available)
Design: DIN-rail housing 100x74x119mm (wxhxd)
Function: active-, reactive-, apparent-power for 1-, 3-, 4-wire-systems
Input U: max. 610 V
Input I: external split-core current transformer type series AD-KSW (optional available)
4 Outputs (analog): +/-20mA or +/-10V
2 Outputs (digital): normally open contact
Interface: RS485 (protocol: Modbus RTU)
Configuration: freely via AD-Studio software and adapter set VarioPass (optional available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50-60Hz)
