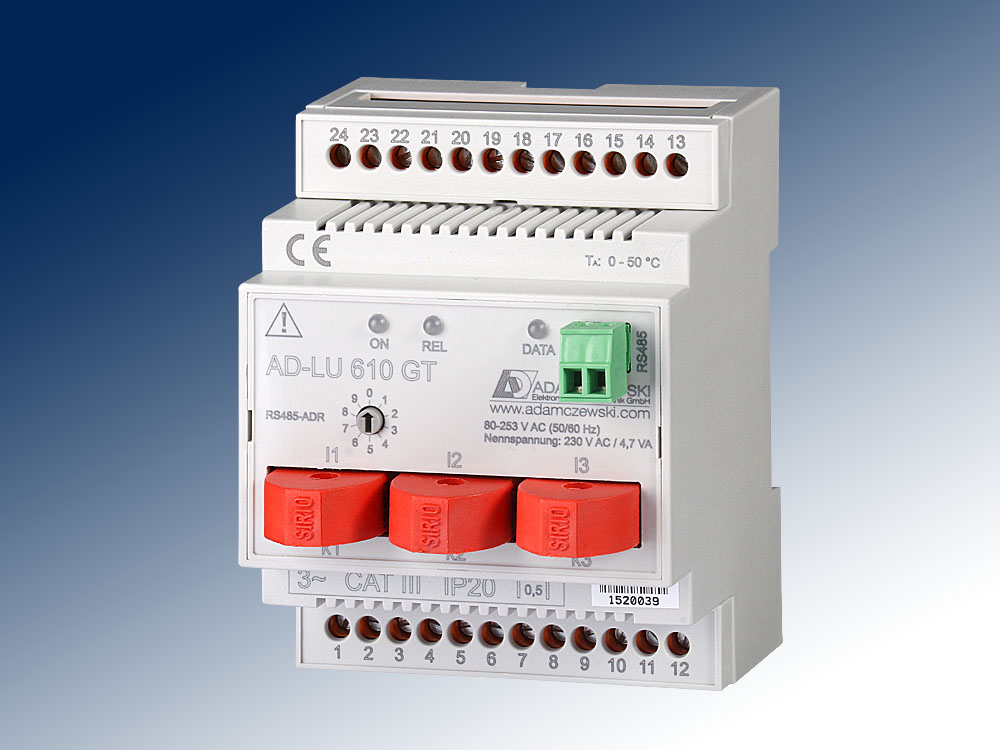

Multifunction-Converter (3-phase) AD-LU 610 GT
Function: measurement of all parameters of three-phase power systems
and energy metering with pulsed output
Design: DIN-Rail housing 71x90x70mm (wxhxd)
Input U: 80...253VAC / Input I. max. 20 AAC via bar-type transformer mounted on the front
Output 1 (analog): current (max. 20 mA)
Output 2 (analog): voltage (max. 10 VDC)
Output digital): change-over contact
Configuration: freely via AD-Studio software and adapter set VarioPass (optional available)
Power-supply: via measuring input L1
