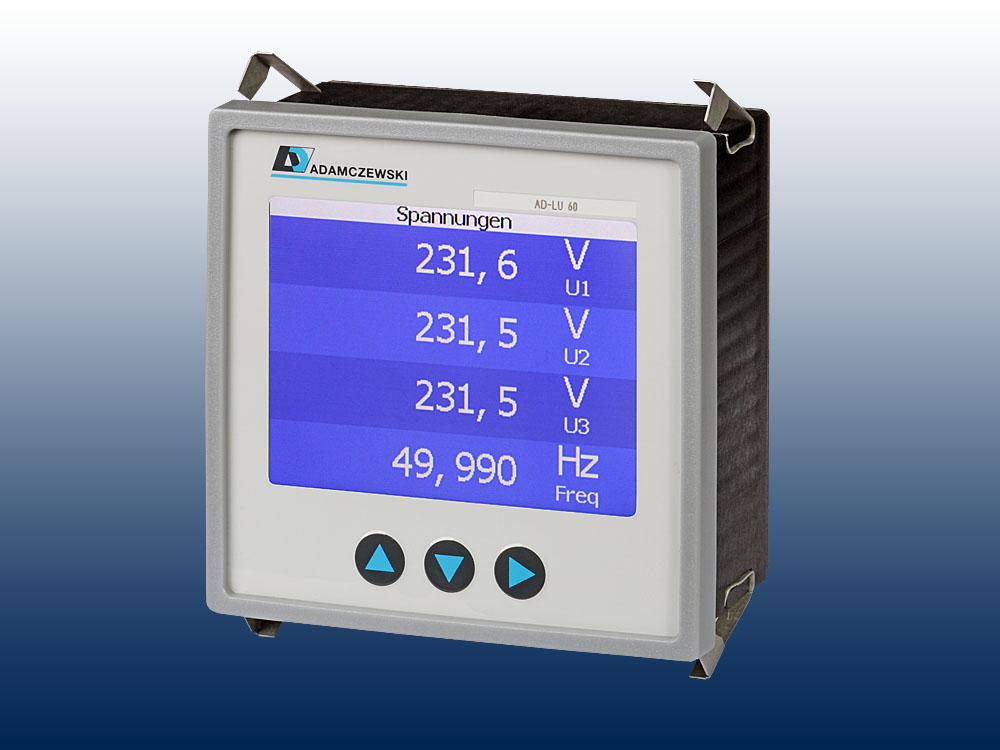

Power Meter AD-LU 60 FE-DB
Design: panel-mount case 96x96x44 (wxhxd)
Function: measurement of all parameters of three-phase power systems in 4-wire installations
Display: 3.5 "TFT, 320x240
Inputs U and power-supply: 80...253 VAC
Inputs I: max. 20AAC via bar-type transformer mounted on the rear
Outputs (digital): 2x opto couplers
interface: RS485 (protocol: Modbus-RTU)
Configuration: freely via AD-Studio software and adapter set VarioPass (optional available)
