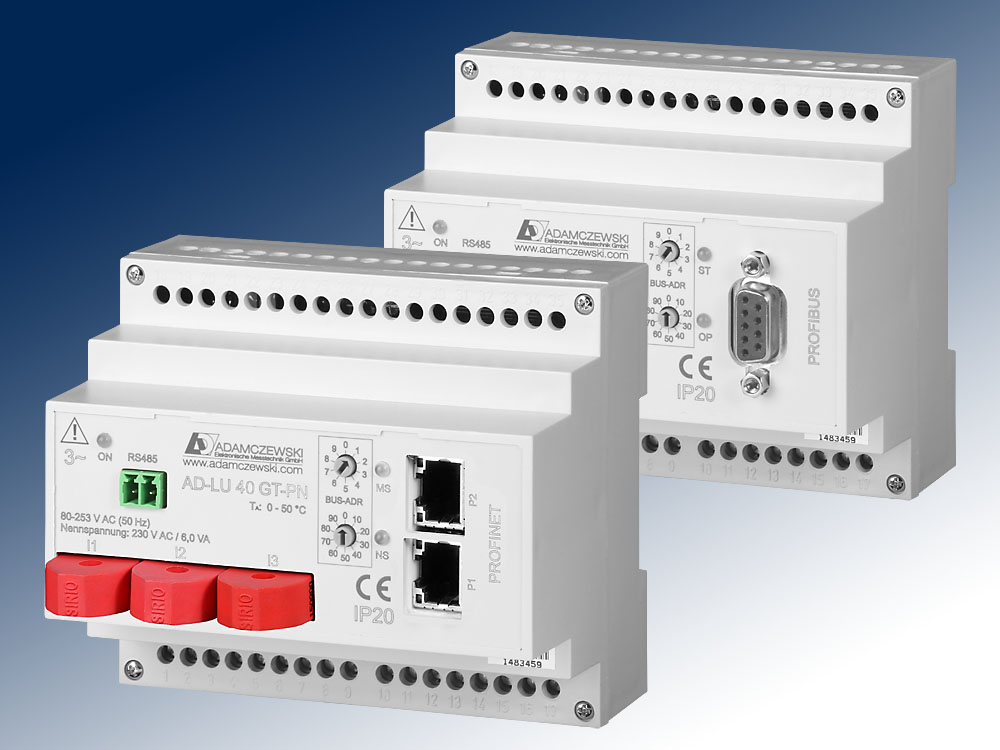

Power Meter PROFINET AD-LU 40S GT-PN
Function: measurement of all parameters of three-phase power systems in 3- and 4-wire loads
Design: DIN-Rail housing 105x90x84mm (wxhxd)
Input U: 50...253VAC / input I: max. 20AAC via bar-type transformer mounted on the front
Interfaces: PROFINET and RS485 (protocol: Modbus-RTU)
Configuration: freely via AD-Studio software and adapter set VarioPass (optional available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50-60Hz)
