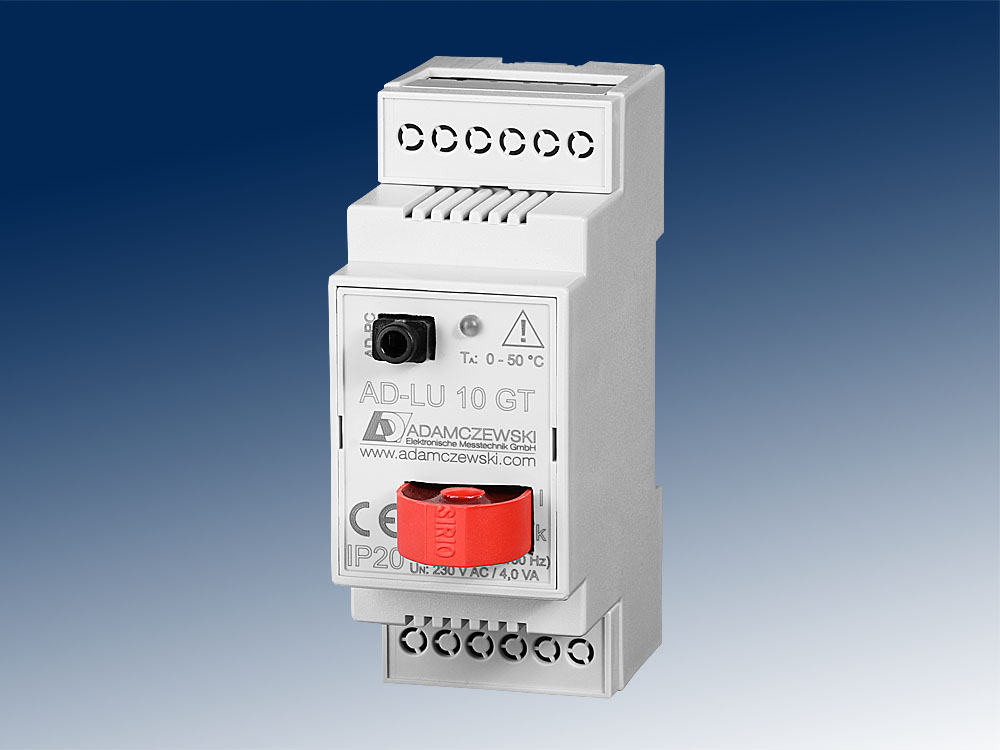

Power Meter AD-LU 10 GT
Function: measurement of all parameters of AC mains networks
Design: DIN-Rail housing 35,5x90x70mm (wxhxd)
Input U: 80...253VAC / input I: max. 20AAC via bar-type transformer mounted on the front
Output (analog): 0...20mA, 4...20mA
Output (opto couplers): s0 or limit
Configuration: via AD-Studio software and adapter set VarioPass (optional available)
Power-supply: via measuring input L1
