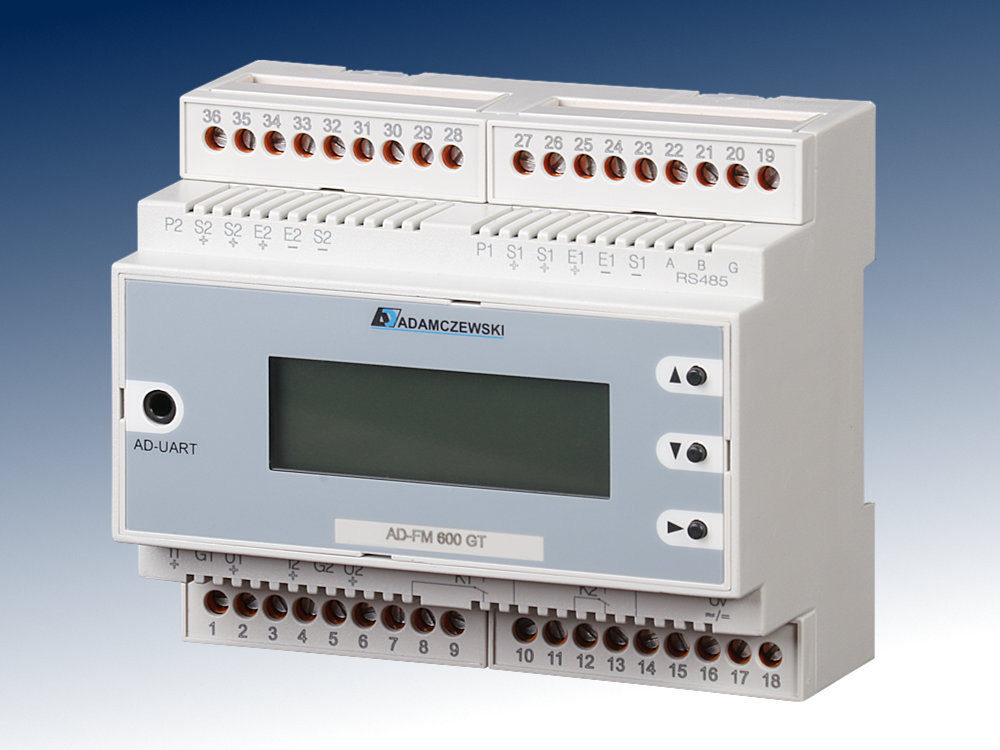

Frequency Transducer AD-FM 600 GT
Design: DIN-rail housing 105x90x60 (wxhxd)
2 input: frequency 0...0,01 Hz up to 0...10 kHz (freely programmable)
2 Output (analog): 1x current or voltage (max.20mA/10V) each channel
2 Output (digital): 1x change-over contact each channel
Display: backlit graphic LCD 122x32 pixels
Interface 1: UART configuration interface
Interface 2: RS-485 (Modbus / RTU protocol)
Setup: programming keys on the front panel or via API and AD-Studio software (optional available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50-60Hz)
Incl. pre-set user language and operating manual (English version)
