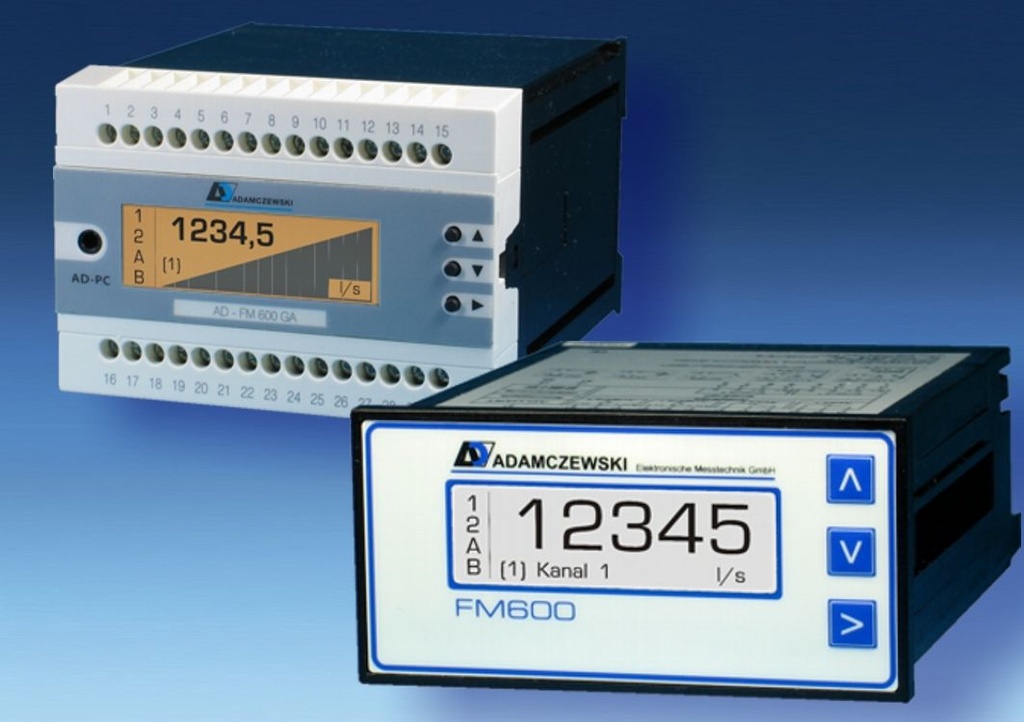

Frequency Transducer AD-FM 600 FE-O open collector
Design: panel-mount case 96x48x130mm (wxhxd)
2 input: frequency 0...0,01 Hz up to 0...10 kHz (freely programmable)
2 Output (analog): 1x current or voltage (max.20mA/10V) each channel
2 Output (digital): 1x opto couplers each channel
Display: backlit graphic LCD 122x32 pixels
Setup: programming keys on the front panel or via API and AD-Studio software (optional available)
Power-supply: wide-range 20...253VDC / 50...253VAC (50-60Hz)
Incl. pre-set user language, operating manual and connection terminal kit (English version)
